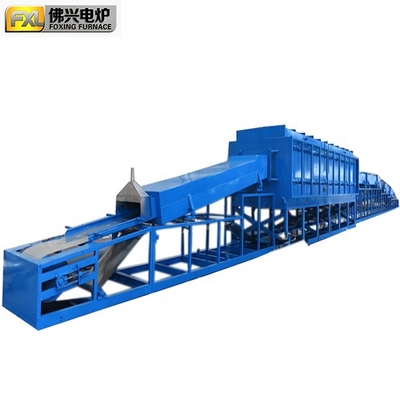

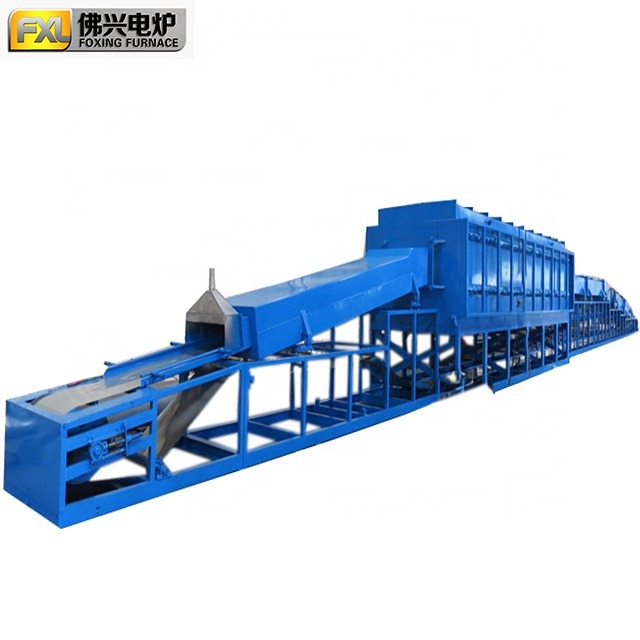

Continuous atmosphere protective powder metallurgy sintering furnace
Application:This continuous gas shielded heat treatment furnace mainly use for powder metallurgy bright sintering and reduction. Such as , Machine Parts, Stainless Steel Powder,Iron Powder , Copper Powder . And Metallic Seal, Terminal Sintering, Sliver Sintering Heat Treatment, etc.
The composition of the production line:Mainly made by the feed section, heating section, cooling section, transmission, electrical and temperature control systems and protective atmosphere system, etc.
1.Overall dimensions of equipment:18000(L)x2100(W)x3100(H)mm
2.The effective heating area: 3600(L)X300(W)x100(H)mm
3.The effective cooling area:9000(L)x300(W)x100(H)mm
4.The effective size of the Muffle tank:4200(L)x300(W)x100(H)mm
5.Adopt the SUS 310S stainless stell mesh belt to conveyor,and the wire diameter is Φ2.5mm,string wire diameter is Φ3.0mm,the width is 280mm
6.rated temperature:1100℃
7.working zone: 3 zones
8.heating type: electric resistance, single phase
9.the furnace muffle use Sweden SUS310S heat resistance stainless steel.
10.controller temperature precision:±1℃
11.furnace temperature uniform:5 ℃
12.protective atmosphere gas consumption:≤15Nm³/h
13.furnace surface temperare:≤ room temperature+50℃
|
model |
power(kw) |
voltage(v) |
temperature(°C) |
Heating element
|
Heat area |
Chamber size(Lx WxH)mm |
Effective length of cooling(mm) |
Heating time(H) |
boundary dimension(LxWxH)mm |
|
FXL-210-11 |
210 |
380/3 |
1100 |
Y |
4 |
5600x720x300/420 |
13000 |
≤2.5 |
29600x2200x3100 |
|
FXL-320-11 |
320 |
380/3 |
1100 |
Y |
6 |
8600x800x320/450 |
17000 |
≤2.5 |
34000x2300x3200 |
|
FXL-800-11 |
Gas heating |
380/3 |
1100 |
Gas heating |
4 |
10000x800x320/450 |
19000 |
≤2.5 |
40000x2500x3600 |
We are produce no-standard production according your requirement, pleas dont't hesitate to contact with us!
