Home /Products/Air Circulation Furnace/Sustainable Biomass Flour Pellet Flour Wood Alfalfa Air Circulation Wet Drying Processing Pipe Drying Stove Ce Approved Professional Sawdust Dryer Machine

Sustainable Biomass Flour Pellet Flour Wood Alfalfa Air Circulation Wet Drying Processing Pipe Drying Stove Ce Approved Professional Sawdust Dryer Machine

1 Set
MOQ
$10,790.00(>=1 Sets)
Price
Sustainable Biomass Flour Pellet Flour Wood Alfalfa Air Circulation Wet Drying Processing Pipe Drying Stove Ce Approved Professional Sawdust Dryer Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Rotary Drying Equipment
Application: Biomass Drying Processing
Condition: New
Voltage: 220V/380V/UPON
Power: 7.5+3kw
Dimension(L*W*H): 920*12m
Key Selling Points: Automatic
Warranty: 1 Year
Weight (KG): 5500
Applicable Industries: Manufacturing Plant, Energy & Mining
Showroom Location: Canada, Turkey, United Kingdom, United States, Italy, France, Germany, India, Mexico, Thailand, Kenya, Malaysia, Australia, Morocco
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor
Evaporation Capacity(kg/h): 3570
Heating Method: Gas/Oil/Electric/Steam/Biomass/Coal Heating
Material: SUS304, SUS304L, SUS316, SUS316L, Ti, Other
Raw Material: Wood Chips, Sawdust, Wheat Straw, Hay Grass, Etc
Product Name: Biomass Wood Used Sawdust Rice Husk Dryer Machine
Keywords: Rotary Dryer Machine
Usage: Drying Wet Raw Material
Heating Source: Gas/Oil/Electric/Steam/Biomass/Coal Heating
Color: Customers Request
Dryig Process: Continuous Automatic Drying
Temperature Range: 280±30℃
Installation: Engineer Oversea Installation
Final Moisture(%): 15% (adjustable)
Basic Infomation
Payment & Shipping Terms
Packaging Details: 20ft or 40ft container
Supply Ability: 15 Set/Sets per Month
Product Description
Product Description
durable air flow biomass pellet flour wet alfalfa waste wood pipe drying stove ce approved professional sawdust dryer machine
Specification
Model
GT800
GT1000
GT1200
GT1500
GT1800
Capacity kg/h
800-1000
1200-1500
1500-2000
2000-2500
3500-4000
Main motor
3KW+7.5KW
4KW+11KW
5.5KW+11KW
7.5KW+18.5KW
18.5KW+22KW
Weight
2800kg
3800kg
4500kg
5000kg

Diameter of roller
800mm
1m
1.2m
1.5m
1.8m
Length of roller
10m-12m
10m-12m
12m-14m
12m-16m
12m-20m
Moisture before drying
40-70%
40-70%
40-70%
40-70%
40-70%
Moisture after drying
8-12%
8-12%
8-12%
8-12%
8-12%
Details Images

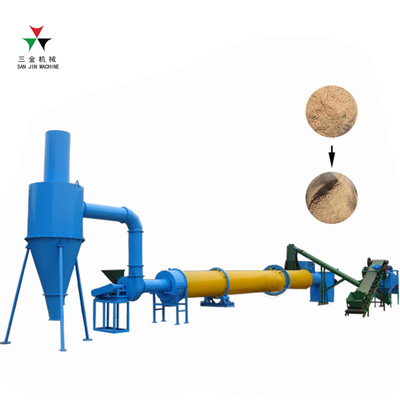

Rotory dryer machine
The Sawdust Rotary Drum Dryer is used for pellet sawdust or powder sawdust. Wet materials are continuously sent into drum through screw conveyer and then get separated and pushed by high-speed hot flow. The moisture in wet materials is taken away in this process and then we get powder or pellet dry materials.
Product configuration
Sawdust dryers are consist of heating furnace, feeding port, drum, filter drum, conveying pipe, cooling drum and discharging port.
Main Features
1.Great drying effect. Wet materials are highly separated in hot flow. The effective drying area is approaching the total surface area of particles.
2.The design of heat conduction pipe is simple, space-saving and convenient for maintenance and repair.
3.Short drying period. High efficiency and energy saving.
4.Large output and high heat efficiency. For unbound water, the heat efficiency can be as high as 60%.
Product Application
Raw materials:
Sawdust dryer are widely used for the drying of straw briquette, charcoal, wood pellet fuel, sawdust briquette, corn straw, soybean straw, cotton stalk, wheat straw, sorghum stalk, wood shavings, sawdust, gingko leaf, mulberry leaves and other fiber materials.
Application Field
Applications:
Rotary Dryer is widely applicable to straw press block fuel, charcoal machinery, sawdust pellet fuel, sawdust press block, farming and animal husbandry engineering etc
Production Line
Company Profile
FAQ
Q: What is the information that I need to offer to get a quotation?
A: In order to design a solution and offer the quotation, we need the following information.
1 the raw material 2 the size of the raw material before crushing by inch or mm 3 the finished product size by inch or mm 4 the production capacity by tons per hour.

Q: How long will I get the answer from you if I give the inquiry?
A:Upon receiving your inquiry, we will answer you in 24 hours.

Q: What about the payment terms?
A:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the factory.

Q: How long is the warranty?
A: The warranty period for structural and mechanical equipment is one year. The warranty period for all electric motors is 3 years. Wear parts are not covered by warranty unless the component part is found to be flawed.

Q: Do you provide overseas installation service?
A: Yes. If you buy machines from us, we will dispatch the most professional engineer to your local site to guide the installation.After the installation, the engineer will also do the commissioning and train the workers to operate the machines, and do the maintenance

Q:.Is the spare parts available?
A: Yes. The spare parts are available. We will give you a 5% discount if you buy from us at the basis of our best price.

Q: How to deliver the spare parts?
A: the spare parts will be packed in wooden case. Generally the spare parts will be sent by sea, but if you need it urgently, we will deliver by air.

Q: What is the lead time?
A: If we have in stock, the machine will be delivered in 3-7 working days after we will the down payment.( the motor needs to be customized as per your local voltage and frequency). If not, it needs 10-30 working days.

Q: What is about your after sales service?
A: Should any problems occur, our team of Engineers and Technicians will respond within 12 hours of notice by the client. If the problems still can not be solved, we will send the engineers to your site to solve the problem.
