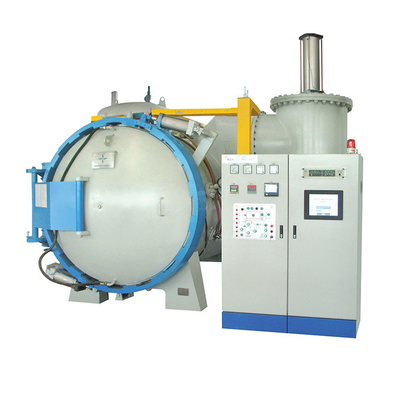

Single-chamber Vacuum High Pressure Gas Quenching Furnace | ||||||||||
Model | Valid zone | Maximum temperature (℃) | Heating power (kw) | Ultimate vacuum (Pa) | Gas cooling pressure (bar) | |||||
ZGQ-40 | 450x300x300 | 1320 | 40 | 5x10-3or4x10-1 | 10 | |||||
ZGQ-80 | 600x400x400 | 1320 | 80 | 5x10-3or4x10-1 | 10 | |||||
ZGQ-120 | 700x500x500 | 1320 | 120 | 5x10-3or4x10-1 | 10 | |||||
ZGQ-150 | 900x600x600 | 1320 | 150 | 5x10-3or4x10-1 | 10 | |||||
ZGQ-300 | 1500x800x800 | 1320 | 300 | 5x10-3or4x10-1 | 10 | |||||
The heating chamber adopts graphite tube heating, and the thermal-protective coating adopts a composite thermal insulationstructure of graphite soft felt and graphite hard felt. For products with high color requirements or special materials, the metal screen structure of molybdenum and stainless steelcomposite insulation can also be adopted according to the special requirements of customers; The size of valid zone can be customized according to customer requirements; Equipped with low-temperature convection heating system; Computer control system; | ||||||||||
Product description: mainly used for bright quenching of tool steel, die steel, with small deformation and no need for secondarycleaning. | ||||||||||
