biomass pipe hot air sawdust rice husk dryer biomass wood sawdust dryer hot air flow type hot air furnace small sawdust dryer
The Biomass Pipe Hot Air Sawdust Rice Husk Dryer also called pipe dryer,sawdust flash dryer ,this machine is designed for drying material like sawdust,wood shaving,wheat,straw,and corn talks. paddy straw, etc. The diameter of the raw material should be lower than 3mm,and
the moisture in the raw materials of less than 40% can be drying one time to meet the requirement for wood briquette production line.
Features of Biomass Wood Sawdust Dryer Hot Air Flow Type:
² Suitable for drying materials of moisture 20-70%.
² Suitable for drying materials like sawdust, rice hull, milling wheat straw, corn stalks etc.

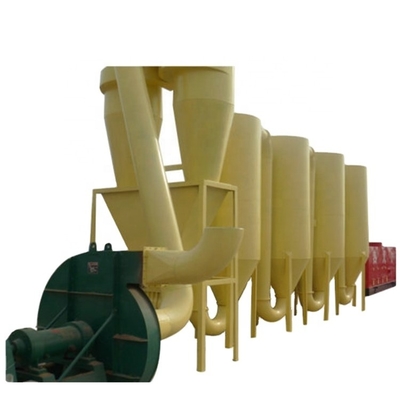

² Equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are input into the hopper.
² The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock.
² It reduces the moisture to 8-12%.
² Clients can change the angle of dryer base on the production field.
Operating Procedures:
² After the installation is complete, turn on the fan, check the direction of the fan rotation and whether the suction port is normal.
² Check the flange interface to see if it leaks.
² Bundle the bags that are open at both ends at the lower opening of the separator.
² Add the material to be dried at the feeding port, and remove the large particles before drying, which is beneficial to increase the drying speed.
² Add fuel to the furnace to ignite and turn on the fan. When the temperature at the wind outlet is as high as 150 °C, the material is cut off and dried.
² Remove large pieces of material from the slag discharge port in time to facilitate feeding.
|
Product |
biomass pipe hot air sawdust rice husk dryer biomass wood sawdust dryer hot air flow type hot air furnace small sawdust dryer | |||
|
Model |
HG- 219 |
HG - 300 |
HG - 350 |
HG - 400 |
|
Initial Moisture |
25%-40% |
25%-40% |
20%-40% |
20%-40% |
|
Final Moisture |
10%-15% |
10%-15% |
10%-15% |
10%-15% |
|
Main Power |
4 kw |
7.5 kw |
11 kw |
15 kw |
|
Drying Speed |
200-250 kg/h |
300-400 kg/h |
600-800 kg/h |
800-1000kg/h |
|
Pipe Diameter |
260mm |
300mm |
350mm |
400mm |
|
Cyclone Diameter |
780mm |
900mm |
1050mm |
1200mm |
|
Fuel Consumption |
40-50kg/h |
60-80kg/h |
80-100kg/h |
100-150kg/h |
|
Dimension |
9*2.5*3.1 m |
16*2.5*3.2 m |
18*3*3.3 m |
20*3*3.5 m |
|
Weight |
1760 kg |
2660 kg |
3200 kg |
4000 kg |
Function of Small Sawdust Dryer:
Ø Can guarantee the standard rate of the finished products
Ø Can solve the problem for the uneven final particle size.
Ø Adopts high technology Reliability Precision
Ø Unique design.and advanced heating mode by firewood.oil and electricity
Our Machine adopt word-famous brand for the key electronic elements, pneumatic and hydraulic system to ensure high quality and reliable of the Agriculture machinery and feed machinery After the unremitting efforts of all staffs , Mikim won the approval and trust of the customers with the excellent performance , advanced technology and good reputation.
Our machines are widely used in various fields of China and have exported to Southeast Asia, Europe, Africa, South America, Middle East Countries, and other areas. Europe technology, perfect performance. Mikim -Machine is your reliable mechanical supplier.
We have very attractive prices and looking for oversea agents ,welcome contact us for further information and you will be surprised of the significant savings that your company can achieve by working with us.
PACKAGE
Standard export wooden case packing, fit for multiple handing and long distance air/ marine shipping.
DELIVERY TIME
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order
