Building Material Shops High Efficiency Toughening Glass Machine For Tempered Glass Making Tempered Glass Machinery

1.0 Sets
MOQ
Building Material Shops High Efficiency Toughening Glass Machine For Tempered Glass Making Tempered Glass Machinery
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works
Showroom Location: None
Condition: New
Machine Type: Glass Making Machine
Production Capacity: 20 Sets/ Year
Power: 200KW
Weight: 20000 Kg
Warranty: 1 Year
Key Selling Points: Energy Saving
Glass Thickness: 3-19mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Hot Product
Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Bearing, Gear, PLC
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wooden cases and winding film
Supply Ability: 10 Set/Sets per Year
Product Description
The qualified mixture sent by the batchinq system is sent to the furnace after adding broken glass. The loader is automatically put into the furnace. With the help of heavy oil atomized by the nozzle and mixed with hot air for combustion. the heat of high-temperature flame is generated. The raw materials are melted through the molten pool to obtain molten glass, which flows to the furnace waist, enters the working section evenly hrough a water-cooled mixer, and is adjusted to the temperature range required for forming.
The tin bath is the key equipment for float qlass production. The tin bath is made of refractory materials. The steel structure shell is set outside. The whole tin bath is supported by the lower supporting steel structure. The supporting structure is uniquely designed and can be free from the influence of fan and other mechanical vibration to ensure the level of tin level. The tin bath is filled with tin liquid, up to 160000kg in total. The molten qlass in the furnace enters the tin bath through the launder, It floats on the horizontal tin surface and forms a flat glass belt after coolinq. In order to control the thickness of the qlass, edge pullers, qlass thickness monitoring equipment and instruments, cameras, etc. are set on both sides of the tin bath.
In order to clean the stress and improve the glass quality, the glass plate and strip from the tin bath enter the annealing kiln for annealing treatment. The annealing kiln is composed of 150 kiln shell, heat-resistant roller table. composite roller table and tire roller table. The roller table is driven by motor and reducer in groups. The elevation of roller table surface is adjustable. It can be rotated manually in case of electric drive failure

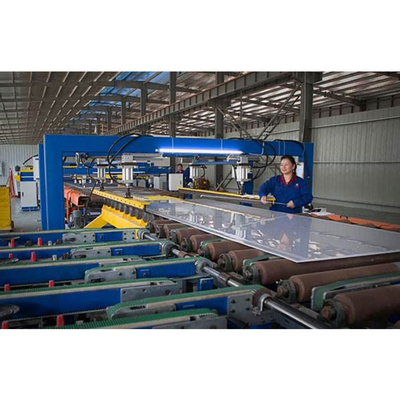

The annealed glass plate and strip continuously enters the finished product processina line. and is washedl with water. dried, scanned, inspected. longitudinally cut, transversely cut. broken, edae removed and divided into pieces according to different sizes. Then, the pieces are automatically taken. lined. stacked and packaged by the piece takina device. The cut rough edaes and unqualified alass are broken and sent to the broken glass svstem through the belt convevor
1. What brand of electrical appliances do you use? Can we specify a brand?
 In the electrical part, we mostly use Schneider and Siemens, and can accept the brand designated by customers

2. What service can you supply?
 Engineers available to service machinery overseas.

3. What’s the packages?
 The normal package is wooden box. If export to foreign countries,the wooden box will be fumigated or use polywood case.

4. Can you do turn-key project?
 Yes, We have a mature technical team that can do turnkey engineering.

5. What’s the payment terms?
 30% by TT as deposit, 70% by TT or LC at sight vefore delivery.

6. What’s your advantages?
 As a member of the family business, we have a copper production plant. Therefore, we are more familiar with the production process. At the same time, we have professional engineers and can get more direct use feedback. We have a good cooperative relationship with most of the domestic machinery manufacturers, so we can get a better price.

7. What’s the delivery time?
 Usually 60 working days.
