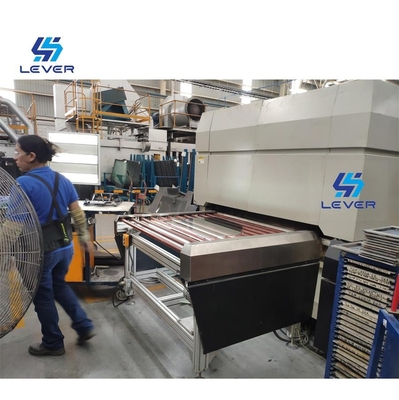

Glass Automatic Horizontal Lengthwise Cross Bend Glass Sidelites Tempering Furnace With Standard Accessory

1 Set
MOQ
Glass Automatic Horizontal Lengthwise Cross Bend Glass Sidelites Tempering Furnace With Standard Accessory
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining
Showroom Location: None
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 98%
Voltage: 380V
Power: 400KW
Dimension(L*W*H): 12002*6000*3300mm
Weight: 20000KGS
Warranty: 1 Year
Key Selling Points: High-accuracy
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Certification: Ce
After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support
Application: Auto Sidelites Glass, Car Side Glass, Side Window Glass
Glass Thickness: 3.2-6mm
Glass Can Be Tempered: Clear Glass,tinted Glass,pattern ,screen Printed Glass
Installed Power: 400KVA
Heating Method: Radiation
Min. Glass Size: 300mm*400mm
Max Glass Size: 1200mm*800mm
Services: Online Support, Field Installation, Commissioning And Training
Products: Safety Qualified Car Tempered Glass
Bending Way: Latest Gear Rigid Shaft Bending
Basic Infomation
Certification: ce
Payment & Shipping Terms
Packaging Details: seaworthy and some parts packed in wooden cases
Supply Ability: 15 Set/Sets per Month
Product Description
Single Curved Glass Tempering Furnace for Car Door Glass
Automotive Sidelites/ Car Side Window glass making machine Tempering furnace is a special plant used to produce the bent tempered glass, which mainly used in the fields of side windows (sidelites) of automotives, trucks, shower room, furniture, etc.
Main Technical Features:
Loading Table:
1. Equipped with LED light to detect the glass with defects.

Heating Section:
1. Non-reciprocating moving, continuous type, higher productivity, better quality. (only for vey big productivity, 8 working positions)
2. Sectional heating, individual heating zones for each working position.
3. There are ceramic plates to divide the different heating zones,
4. There are ceramic plates at the top of oven, which could ensure more even heating, avoid dregs falling. But the cost is higher and has higher requirements on the installation.
5. The ceramic rollers system is driven by Multiple belts, which can ensure better simultaneous and stable running, and avoid the scratch and destroy of glass when above the rollers. It would not affect the running when any one of belt damaged. The design as below picture.
6. Round type air ducts, stronger air pressure, less air loss, lower energy consumption
Control System:
1. PLC, inverters. Contactors: Siemens
2. Network data for servo motor control mode: Profinet, compared with traditional wiring-connection, this mode could reduce disturbance
