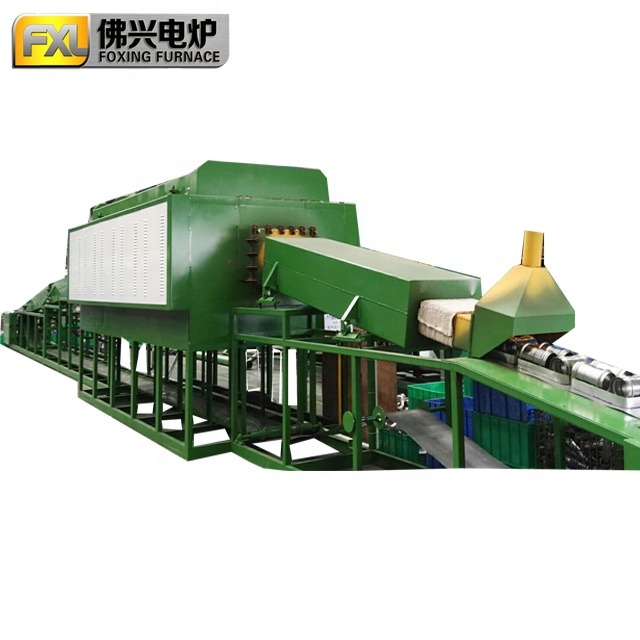

Continuous atmosphere protective powder metallurgy sintering furnace
1. Using ammonia decomposition atmosphere as high reducibility protective atmosphere, without oxidation heating workpiece at high temperature, no oxidation and in the subsequent cooling, to achieve the effect of light treatment.
2. Suitable for powder metallurgy sintering, brazing, silver soldering of various precision parts, stainless steel brazing; bright annealing of copper alloy parts and magnetic materials.
3. Applicable to the light processing of martensitic stainless steel and austenitic stainless steel, such as stainless steel tableware, stainless steel cutlery, stainless steel precision products (watchcase, strap, etc.)
4. Suitable for stainless steel heat pipe black, blue treatment.
5. Using tropical as heating element, distribution in the upper and lower chamber of a stove or furnace, uniform heating, easy maintenance.
|
type |
rating power (KW) |
rating temperature (℃) |
Power supply
|
(length×wide×high) (mm) |
(length×wide×high) (mm) |
Furnace body length (mm) |
Shape dimension(mm) |
|
FXL-21-11 |
21 |
1150 |
Three phase 380V |
2020×130×40 |
4500×130×40 |
11000 |
100 |
|
FXL-27-11 |
27 |
1150 |
Three phase 380V |
2680×180×70 |
5000×180×70 |
12000 |
160 |
|
FXL-36-11 |
36 |
150 |
Three phase 380V |
2680×200×70 |
5000×200×70 |
12000 |
180 |
|
FXL-48-11 |
48 |
1150 |
Three phase 380V |
2880×280×220 |
4500×280×220 |
16000 |
250 |
|
FXL-85-11 |
85 |
1150 |
Three phase 380V |
4680×280×280 |
6000×280×280 |
17000 |
250 |
|
FXL-100-11 |
100 |
1150 |
Three phase 380V |
5000×280×280 |
6000×280×280 |
18000 |
250 |
|
FXL-110-11 |
110 |
1150 |
Three phase 380V |
6170×280×280 |
7000×280×280 |
20000 |
250
|
1.How many years Have your company in the heat treatment furnace manufacturing.
Our factory was builded in 1991. Have 29 years in manufactruring of heat treatment furnace. We have a great technical team with rich experience.
2.Your machines have exported to which country?
Our furnaces have been exported to more than 50countries. Such likeTurkey, Spain, France,Malaysia,India,Pakistan,Bangladesh,Uzbekistan,Mexico,Ghana,Saudi Arabia......
Wish you will join us too!
3.If we buy the machine from you, will you offer the operate training?
Yes, If the customers need, we will send engineers for furnace installation and testing,And also will offer the professional operate training for the working. we will offer the details operate manual and the drawings for learning first. So please don't worried about the using of the furnace.
4.If we don't know the heat treatment process, Can you help us?
Yes, of couse. We are member of the Guangdong heat treatment association, we always have meeting to discuss the newest technical of the heat treatment process. And our engineers is have rich experience. So we will offer the best suggestion of the heat treatment technical.
5.What is the quality warranty period of your furnace?
After completion of equipment installation and testing, within a year, if there is any quality problems in equipment, we will provide free spare parts to you.
