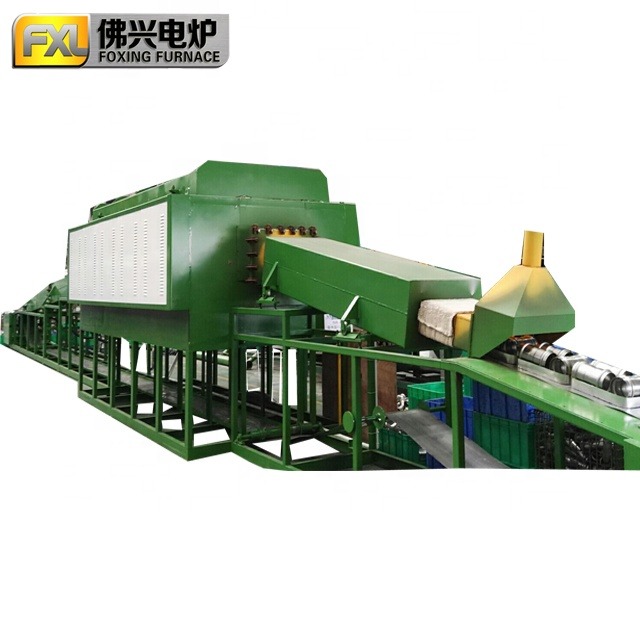

FXL series continuous light annealing furnace (annealing, brazing, sintering)
Main application and structural features:
1. Using ammonia decomposition atmosphere as high reducibility protective atmosphere, without oxidation heating workpiece at high temperature, no oxidation and in the subsequent cooling, to achieve the effect of light treatment.
2. Suitable for powder metallurgy sintering, brazing, silver soldering of various precision parts, stainless steel brazing; bright annealing of copper alloy parts and magnetic materials.
3. Applicable to the light processing of martensitic stainless steel and austenitic stainless steel, such as stainless steel tableware, stainless steel cutlery, stainless steel precision products (watchcase, strap, etc.)
4. Suitable for stainless steel heat pipe black, blue treatment.
5. Using tropical as heating element, distribution in the upper and lower chamber of a stove or furnace, uniform heating, easy maintenance.
specification and main technical parameters
|
type |
rating power (KW) |
rating temperature (°C) |
Power supply (3phase)
|
(length×wide×high) (mm)
|
(length×wide×high)(mm) |
Furnace body length(mm) |
Shape dimension(mm) |
|
FXL-21-11 |
21 |
1150 |
380V |
2020×130×40 |
4500×130×40 |
11000 |
100 |
|
FXL-27-11 |
27 |
1150 |
380V |
2680×180×70 |
5000×180×70 |
12000 |
160 |
|
FXL-36-11 |
36 |
1150 |
380V |
2680×200×70 |
5000×200×70 |
12000 |
180 |
|
FXL-48-11 |
48 |
1150 |
380V |
2880×280×220 |
4500×280×220 |
16000 |
250 |
|
FXL-85-11 |
85 |
1150 |
380V |
4680×280×280 |
6000×280×280 |
17000 |
250 |
|
FXL-100-11 |
100 |
1150 |
380V |
5000×280×280 |
6000×280×280 |
18000 |
250 |
|
FXL-110-11 |
110 |
1150 |
380V |
6170×280×280 |
7000×280×280 |
20000 |
250 |
