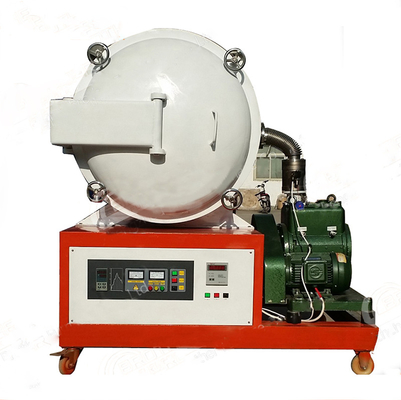

1800C lab and industry using vacuum heat treatment brazing vacuum furnace best price
Laboratory vacuum annealing furnace
1200℃-1800℃ annealing vacuum Furnace
JHP-5 Annealing Furnace uses Resistance wire as heating elements, which can be used up to 1200℃. These compact muffle furnaces are perfect for many applications in laboratory. It is an ideal instrument for materials annealing and sintering in your research.
Features
1. Operation Temperature: 1100℃ (1200℃ for short time).
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
3. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR (Silicon Controlled Rectifier).
5. Power control with 51 segments programmable
Ⅰ. Technical Specifications
| Chamber size | 200x200x200mm(width*height*depth)(8Liter) |
| Max. temperature | 1200 C (<2hour) |
| Working temperature | 1100 C |
| Temperature controlling | PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. |
| 30 programmable segments for precise control of heating rate, cooling rate and dwell time. | |
| Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. | |
| Over temperature protection and alarm allows for operation without attendant. | |
| Temperature accuracy | ±1C |
| Temperature Uniformity | ±5C over 120mm @ 1100C |
| ±3C over 80mm @ 1100C | |
| Heating rate | 0-20C /min |
| Thermocouple | K type with 99.7% purity Alumina tube |
| Heating element | Quality heating wire |
| Furnace Chamber | Two layers of ceramic fiber insulation materials |
First layer: 1430°C ceramic fiber board, density 450kgs/m3. Thermal conductivity (1200℃) is only 0.18W/m.k. | |
| Second layer: 1260°C ceramic fiber board, density 350kgs/m3. | |
| Furnace structure | Double layer steel casing with dual cooling fan, surface temperature below 60oC |
| Furnace door | Front-side open |
| Power cutting off when furnace door open | |
| Working voltage | 220V, 50HZ |
| Rated power | 5KW |
| Warranty | One year limited warranty with life time support. (Consumable parts such as heating elements and crucibles are not covered by the warranty, please order the replacement at related products) |
ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of One Year Limited Warranty. | |
| Certifications | CE |
| Ⅱ. Application Notes | |
Using Attentions
Stander chamber size (mm) | Cooling rate shall also not exceed 10℃ /min. |
| Toxic or explosive gases are not recommended for use with this furnace without necessary | |
| safety controls and supervision. | |
Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. | |
| Refractory door block must be inserted before closing door. | |
| | |
Related Mixing machine:
Packing&Delivery:
Read it before leaving this page for it is helpful for you to make the right choice
1. Q: Do you have a small capacity mixer/blender of 3 liter?
A:Yes, we have small capacity mixer from 3L to 110L for lab use.
2. Q: Is it easy to clean so that we can mix/blend different powder one batch after another?
A: Yes, our mixer's inside blades and barrel are all dismountable. You can clean it thoroughly by yourself.
3.Q: Is it possible to mix/blend 3 liters or 15 liters with one machine only?
A:Yes, There is 6 size barrel for 1 mixer from 3L to 18L. You can choose what you need.
4. Q: If I want to mix different powders particle size in 200mesh(74um), how long would be ok?
A:10 minutes or less upon the fluxility of the powder
5. Q: If I want to mix powder size smaller than 800 mesh(19um), would it also capable?
A:Yes
6. Q: If I want to mix light powder and heavy powder, like Mgnesita powder and Cromo powder, the light powder is easily floating on the surface of heavy powder, then the light powder can not well- dispersed. Does your mixer can slove this problem?
A:Yes, absolutely. Our double movement series mixer have unique structure over the world. The barrel rotating while the inside 8 full size helical blades rotating also. The barrel rotating like a 3D mixer. The inside helical blades can do cutting, dividing,pressing job. If our machine used to mix normal powders like milk powder,detergent powder,protein powder, etc.....it will need less time than other mixer.
7. Q: I am in food industrial, what kind of mixer/blender is better for me?
A: All parts connect to food mixture need better quality stainless steel 304/316 to prevent contaminate.
