Introduction

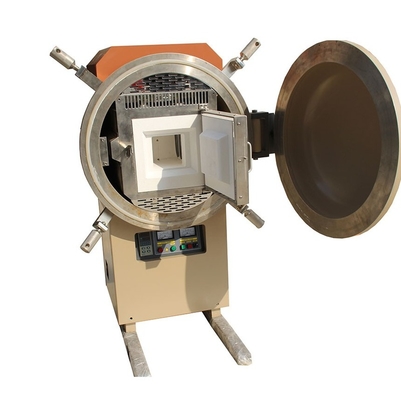

JZ-V1600X facilitate operation of firing cycles where atmosphere condition can be altered during operation cycle, from oxidizing, (such as air to inert atmosphere), or argon/nitrogen to rough vacuum.
This type of furnace makes multi-atmosphere process in one cycle possible: binder burn out in air and parts sintering under vacuum or inert gas atmosphere.
These furnaces are designed for accurate air/inert gas flow rate control, accurate temperature control, excellent temperature uniformity, long lasting performance and safe operations.
It is ideal for laboratories and small scale production for temperatures up to 1600 ℃.
Application
This type of furnace is widely used for heating treatment of materials in vacuum, recursive, protective atmosphere, also can be used for heating treatment of special materials. The furnace chamber is ceramic fiber with excellent thermal insulation;
Features
1: Top quality heating elements doesn't pollute the heating sample.
2: Better temperature uniformity and better thermal insulation.
3. Power control with 51 segments programmable.
4. B type high accuracy thermocouple.
5. Vacuum system and gas flow control system.
6. High purity alumina ceramic fiber chamber.
Specifications | |||||
Inside Chamber Size & material | 4" x 4" x 5" (101*101*127mm) | 6" x 6" x 6" (152*152*152mm) | 8" x 8" x 8" (203*203*203mm) | ||
10" x10" x12" (254*254*304mm) | 12" x 12" x 16" (304*304*406mm) | 18" x 18" x 18" (457*457*457mm) | |||
24" x 24" x 24" (609*609*609mm) | |||||
Temperature in air and argon gas | 1600°C | ||||
Temperature in vacuum | 1500°C | ||||
Vacuum | 1x10-3 | ||||
Temperature Control | PID automatic control via SCR (Silicon Controlled Rectifier) power control, e. g. current limiting phase angle fired the resistor with 51 programmable segments. | ||||
Temperature Accuracy | +/- 1°C | ||||
Heating Element | MoSi2 | ||||
Thermocouple | B Type | ||||
Working Voltage | AC 208V-240V single phase, 50/60 Hz (100A air breaker is required) | ||||
Max. Power | 3kw-50kw | ||||
Warranty | One year limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty) | ||||
Packing
In order to ensure the customer receive the furnace and accessories without any damage, we packed the furnace in three layers. First, the furnace is wrapped by clear plastic paper, then filled the gap by polyfoam. Finally, it is packed by wooden box.
Shipping
1.By courier, like DHL,UPS,FEDEX,etc. it usually takes 3-4 days to arrive.
2.By air to the air port, it usually takes 5-7 days to arrive.
3.By sea to sea port, it usually takes 15-30 days to arrive.
4.If your delivery time is very urgent, we suggest you to choose by courier or by air.
5.If it not very urgent,we will suggest you to choose by sea,it is very cheap.
1.Timely response
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2. Strict quality control
Arrange production on time and control quality strictly.
3. Shorter delivery time
Book the earliest vessel or plane to guarantee the delivery time.
4.Professional Services
Provide exclusive and unique solution according to our experience
Provide customized design according to our customers' requirements
Provide all the detailed news and pictures from order to delivery
Provide the most reasonable logistics for customers to save every penny
Offer relative export documents and original certificate if needed
5.After-Sales Service
Train how to install the machine, train how to use the machine
Engineers available to service machinery overseas.
