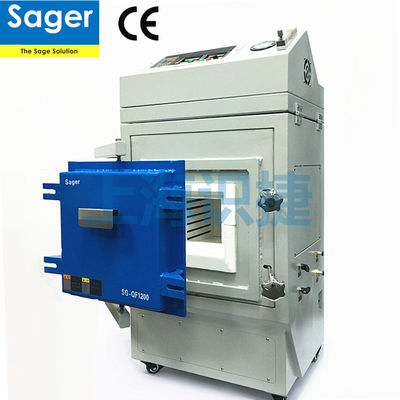

SG-QF SERIE VACUUM ATMOSPHERE FURNACE
SG-QF serie vacuum atmosphere furnaces are high temperature atmosphere heating equipments designed for experimental or small scale production purpose for schools, research institutes and enterprises.
They can be used for atmosphere expriments like: burning, heating, sintering, annealing, tempering, quenching, melting, heat treatment etc. Geses available include: inert gases, oxygen, carbon dioxide, nitrogen, argon, mixed gases etc.
Industries they apply to including but not limted to: metals, ceramics, chemistry, electronic components, minerals, glass, new materials etc.
WHY US
a. New user friendly design: control panel on the top, make it easier for user to operate without squat or bend down.
b. Alumina fiber chamber: less weight with better heat preservation.
c. Smart PID controller with programmable curve up to 51 segments.
d. Safe circuits: integrated module circuits, double loop design with functions of overheat protection, overload protection, thermocouple break protection etc.
e. Sealing: monoblock door with silicon strip built-in.
f. Available gases: inert gases, oxygen, carbon dioxide, nitrogen, argon, mixed gases etc.
g. Gas control: 1 or more inlets and 1 outlet all with needle valve, 1 folow meter and 1 vacuum meter.
h. Good quality control: with CE approval and good quality components.
i. Warranty: 12 months warranty(exclude consumables) and lifetime after-sale support.
j. Service: quick response to any inquiry or support in 24 hours, solutions in 48 hours.
Model | Max Temp. | Accuracy | Thermocouple | Heating Element | Working Space | Standard V/W | ||||||
SG-QF1200 | 1200℃ | ±1℃ | K Type | resistance wire | 100*100*100mm | 220V/1KW | ||||||
SG-QF1200 | 1200℃ | ±1℃ | K Type | resistance wire | 200*150*150mm | 220V/2KW | ||||||
SG-QF1200 | 1200℃ | ±1℃ | K Type | resistance wire | 300*200*200mm | 220V/6KW | ||||||
SG-QF1200 | 1200℃ | ±1℃ | K Type | resistance wire | 400*300*300mm | 380V/9KW | ||||||
SG-QF1400 | 1400℃ | ±1℃ | S Type | SiC rod | 100*100*100mm | 220V/2KW | ||||||
SG-QF1400 | 1400℃ | ±1℃ | S Type | SiC rod | 200*150*150mm | 220V/4KW | ||||||
SG-QF1400 | 1400℃ | ±1℃ | S Type | SiC rod | 300*200*200mm | 220V/9KW | ||||||
SG-QF1400 | 1400℃ | ±1℃ | S Type | SiC rod | 400*300*300mm | 380V/16KW | ||||||
SG-QF1700 | 1700℃ | ±1℃ | B Type | MoSi2 rod | 100*100*100mm | 220V/2KW | ||||||
SG-QF1700 | 1700℃ | ±1℃ | B Type | MoSi2 rod | 200*150*150mm | 220V/4KW | ||||||
SG-QF1700 | 1700℃ | ±1℃ | B Type | MoSi2 rod | 300*200*200mm | 380V/9KW | ||||||
SG-QF1700 | 1700℃ | ±1℃ | B Type | MoSi2 rod | 400*300*300mm | 380V/16KW | ||||||
SG-QF1800 | 1800℃ | ±1℃ | B Type | MoSi2 rod | 100*100*100mm | 220V/2KW | ||||||
SG-QF1800 | 1800℃ | ±1℃ | B Type | MoSi2 rod | 200*150*150mm | 220V/4KW | ||||||
SG-QF1800 | 1800℃ | ±1℃ | B Type | MoSi2 rod | 300*200*200mm | 380V/9KW | ||||||
SG-QF1800 | 1800℃ | ±1℃ | B Type | MoSi2 rod | 400*300*300mm | 380V/16KW | ||||||
More model and specs available, customization available, feel free to contact us! | ||||||||||||
high temperature electric heat treatment furnace
high temperature tube furnace for vacuum heating treatment atmosphere experiment
laboratory high temperature vacuum atmosphere furnace for sintering and annealing
Shanghai sager industrial co limited is a professional manufacturer and supplier of high temperature furnaces and laboratory products based in Shanghai China. Our main product ranges including laboratory furnaces, industrial furnaces, laboratory furniture and other laboratory products which obey to standards such as CE, Ccc,ISO, SEFA, SGS and ASHRAE etc. Main markets of our products including Asia,Europe and North & South America.
With professional manufacturer & sales teams, we supply high quality and effícient service to our clients both
at home and abroad. Our people are capable for international travel in most parts of world with multiple
languages including Mandarin,English, Spanish, Russian, Cantonese and Vietnamese.
Welcome to contact us for cooperation.
Standard packaging is plywood box with foam filler inside and pallet on the bottom.
Overseas transportation includes shipping, train, airfreight, truck or mix.
Express home-delivery available, include fedex, TNT, ups, China post etc. Contact us for more details.
What is the voltage & frequency of furnace?
Normally, the voltage and frenquency is 380v 50hz or 220v 50hz. And 110v 60hz are avaiable to chose.
Usually I only need 900"C to conduct my experiment,can I have a furnace with max temperature of 1000C?
Yes, we can custom-made the fumace according to your need.
How about the temperature/time control?
The Temperature controller Ïs programmable controlled by PID with 30 program, easy to operate. And Touch
screen temperature controller is optional.
How about the dellvery perlod?
The delivery period is depends on the order quantity, in ordinary wehave 1~3 sets in stock.It can be delivery
within 10 working days.
