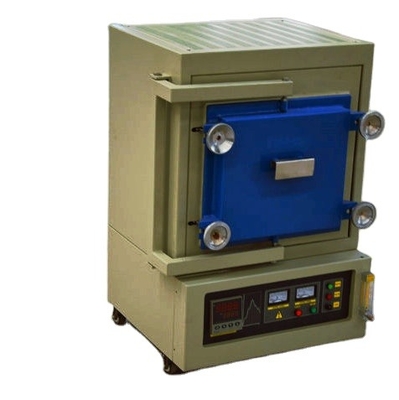

CE 1600C Atmosphere High Temperature Vacuum Furnace 1600C With PID control
1. Operation Temperature: 1700°C/1600°C.
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
3. Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
5. Power control with 50 segments programmable.
6, Advanced vacuum furnace heating chamber using insulated walls and barriers made of high-quality isulation materials,electric energy saving can be highly concentrated in the heating chamber,the energy saving effect is remarkable,
7, can protect materials from oxidation and decarburization with flowing Nitrogen, Argon and other Inert gas
1. Inner container adopted resistance high temperature and pressure alloy material. Can working in vacuum under 100Pa, and can work with variety of protective gases like as N2 ,AR and other insert gas ;
2. Furnace chamber adopted imported alumina polycrystalline fibers, excellent heat preservation and energy saving; Heating element used high quality Mosi2 heater;
3. Reserved 485 convert interface, can be connected with PC through software. It has remote control, real time tracking, history recorder, and output report function. And can be installed the paperless recorder for data storage and output;
4. Overpressure automatically relief, over-temperature alarm and power failure, leakage protection, safe and reliable operation.
Applications:
Applied to vacuum atmosphere processing of electronic components, new materials, and powder materials.
We offer OEM service for you!
| Model | YFA-1700 Approved by CE certificate, ensure the safety operation of the machine. | |||||
| Furnace chamber size | 150*150*150mm 300*200*200mm 400* 300* 300mm (Customizable) | |||||
| (D x W x H) | ||||||
| Furnace chamber | Imported high pure polycrystalline alumina fiber, excellent heat preservation | |||||
| Heating element | High quality Silicon molybdenum rod | |||||
| Thermometric component | B-TYPE thermocouple | |||||
| Temperature control mode |
The temperature control system uses artificial intelligence technology, self - tuning function, 51 steps programmable and PID automatic control |
|||||
| Vacuum degree ultimate vacuum: | - 0.1MPA/10PA | |||||
| Maximum operating temperature | 1700C | |||||
| Furnace Atmosphere | Nitrogen, Argon and other inert gases | |||||
| Constant temperature accuracy | ±1C | |||||
| Max heating rate | 40C/min | |||||
| Recommend temperature rising rate | ≤20C/min | |||||
| Rated power | 4/10/16KW | |||||
| Working power | AC220/380V 50HZ/60HZ | |||||
| Standard accessories | Oven gloves, crucible tongs,vacuum pump and gauge ,crucibles 2pcs ,mosi2 heater 2pcs.thermocouple 1pc | |||||
| Optional purchase accessories | All kinds of corundum crucible, computer control software and paperless recorder | |||||
| Standard Sizes: | |
| Model | Chamber size(WxHxDmm) |
| YFA-1700 | 120x120x130mm |
| YFA-1700 | 150x150x150mm |
| YFA-1700 | 200x200x200mm |
| YFA-1700 | 200x200x300mm |
| YFA-1700 | 250x250x300mm |
| YFA-1700 | 300x300x400mm |
| YFA-1700 | 450x450x500mm |
| YFA-1700 | 600x600x600mm |
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: L/C T/T, West union,etc.
Shipping and Delivery: by air or sea , in 15 days after receiving the payment
Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
A:AI - 808P artificial intelligence temperature controller, temperature
control system using artificial intelligence technology, with a PID regulator, fuzzy control, autotuning function, and can prepare the 50 - segment heating and cooling procedures
B:PLC 50 segment touch screen controller with recorder ,internet connect,data ouput ,compute control function.
New type industrial-grade touch screen operation,all the parameter set in one interface easily , the client can be used as the use of mobile phones easily,New AI artificial intelligence logic PID algorithm ,data record function,support customzied meue.
1.Directly manufacturer offering the best price and quality and service.
2.One sales will be serves client from inquiry to products delivery .Communicate directly and conveniently.
3.Professional R&D team.
4.Strict QC.
5,Professional packing and shipping.ensure goods arrived safely
6.Offering OEM /ODM services.Our AGENT customers are all over the world like USA, UK, Russia, Korea, Southeast Asia, etc. we are quite experienced to help client win more market.
7.Certificate: All our products are CE approval.
8.Fast reply: Our team will respond your requests within 8working-hours
YIFAN FURNACE HAVE OWN DEVELOPMENT TEAM SUPPORT ALL KINDS OEM /ODM DESIGN .SPECIALLY IN HEATING EQUIPMENTS FOR 15 YEARS .ENSURE BEST QUALITY PRODUCTS AND AFTER SALE SERVICE .
Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
