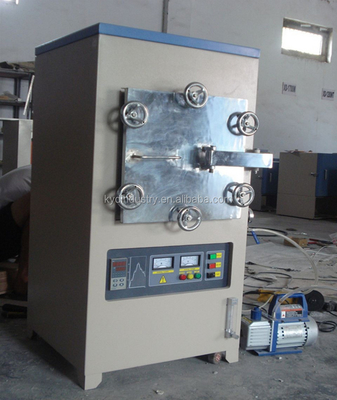

Heating treatment gas controlled atmosphere furnace
KYD-1700C atmosphere furnace is a ISO900:2000 certified lab furnace using high quality ceramic fiber board with ZrO2 Liner and 1900°C MoSi2 Heating elements. Vacuum sealed flange with two valves & vacuum gauge are included for immediate use. The temperature of furnace is controlled by high precision controller with accuracy +/-0.5 °C and 30 segments programmable up to 1600°C. It is widely used for materials or chemical lab to sinter all types of new materials samples under vacuum or other gases condition. Main in using hardening, degassing, annealing, permeating, soldering, sintering.
Vacuum Furnace Features:
1) High quality super MoSi2 heating elements serve as heating element and can be heated up to 1600C
2) High quality ceramic fiber board with ZrO2 Liner
3) All kind of gas can be in put
4) The furnace temperature is controlled by precision SCR (Silicon Controlled Rectifier) digital controller with accuracy +/-1C and 51 segments programmable up to 1600C
5) Built in precision digital temperature controller is 51 segments programmable to control heating rate, cooling rate and dwell time.
6) All accessories are included for immediate use, including:
--Stainless steel vacuum flange with needle vacuum connector and two needle valves are installed on top.
--Heavy duty high speed machanical pump and stainless stere included vacuum pipe are included.
--Compact Digital Vacuum Gauge & Controller
--Double Step Rotary Vane Vacuum Pump
--PID automatic controller
Furnace Structure | Double layer steel casing with water cooling Two cooling fan inside to keep case temperature < 55°C High quality ceramic fiber board with ZrO2 Liner Vacuum Furnace Chamber |
| Gas
| Ar, N2, ..... |
Seal Flange | One pair sealing flange with double silicone high temperature O-ring is included. Two SS needle valves and one dial vacuum gauge are installed with flange for immediate use. |
Heating elements | High quality super SiC (Silicon Carbide) heating elements |
Furnace Dimension | Effective heated chamber: 20"x20"x20" |
Thermal Couples | K type |
Working Temperature | 1700°C with vacuum |
Temperature Controller | PID automatic control via SCR (Silicon Controlled Rectifier) power control, e.g. current limiting phase angle fired the resistor with 51 programmable segments. |
Max. Heating / Cooling Rate | 1-5°C / min, ≤ 10°C / min (suggested) |
Temperature Accuracy | +/- 1°C |
Power | 45KW |
Power Input | AC 380V,50 Hz, 3 phases |
Total Weight | 3200KG (Including Wooden Package) |
Warranty | 24 months limited warranty
|
Certification | CE certified |
Model | Chamber size(WxHJYmm) | Max. Temperature |
1800A | 150x150x150mm (6"x6"x6") | 1700C
|
150x150x200mm (6"x6"x8") | ||
200x200x200mm (8"x8"x8") | ||
200x200x300mm (8"x8"x12") | ||
250x250x300mm (10"x10"x12") | ||
300x300x400mm (12"x12"x16") |
We are a professional high temperature furnace designer and manufacturer in China,and we supply all kinds of muffle furnaces, dental furnaces, zirconia furnaces, tube furnaces, crucible furnaces, atmosphere furnaces, vacuum furnaces, etc. Welcome your inquiry and trail order!We offer 24 hours service.If you have any needs, please contact us.
