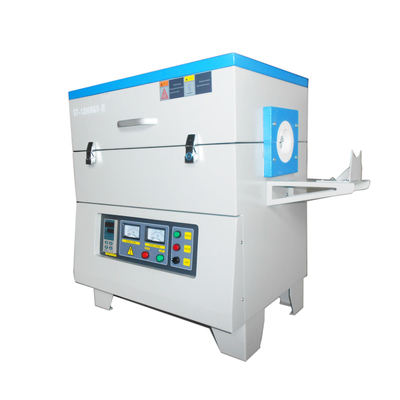

1200.C Desk Type Vacuum Tube Gas Inject Atmosphere Annealing Furnace
ST-1200RG desk type tube Atmosphere Annealing Furnace Application:
ST-1200RG series tube atmosphere annealing furnace mainly used in chemical analysis, physical decomposition and synthesis,superhard materials (such as ceramic), Rare and precious metal smelting and purification,metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.
ST-1200RG-4 Tube Atmosphere Annealing Furnace technical parameter:
| Product name and model | ST-1200RG-4 Vacuum Tube Furnace |
| Heating tube size(OD×L) | Φ 60x400mm (2.5" x 16") |
| Chamber insulation materials | lightweight aluminum oxide Ceramic fiber |
| Maximum Temperature | 1200°C (Working time Not more than 3 hours.) |
| Working Temperature | 400-1100°C (justierbar, continuously Work) |
| Temperature controller way | Based on the microprocessor 30 segments programmable and PID auto control |
| Heating Rate | 1--15°C/min (justierbar) |
| Temperature accuracy | +/-1°c |
| Sensor of measuring Temperature | K type thermocouple |
| Heating elements | Fe/Cr/Al Alloy resistance wire |
| Ultimate vacuum | -0.1MPa |
| Vacuum pump specifications Model | TW-1A;pnmping rate: 1L/s;Power:120W |
| Furnace shell structure | Double ventilation cooling structure |
| Cooling way | Fan cooling |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Working power | AC 1-phase, 110-240 V 50/60Hz (User Choose any) |
| Rated power | 3.5KW |
| Spare function | installed computer communication module and RS485 communication interface, to realize the remote control. |
Standard models of 1200.C Tube Atmosphere Annealing Furnace
| model |
Heating zone (OD×L mm) |
Rated power | Work power | Vacuum pump specifications |
| ST-1200RG-1 | Φ50x300 mm(2.0"x12") | 2.5KW |
AC, 1-phase, 110-240V, 50/60HZ. |
TW-0.5A;0.5L/s;120W;110/220V |
| ST-1200RG-2 | Φ50x400 mm(2.0"x16") | 3.5KW | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-3 | Φ60x300 mm(2.5"x12") | 2.5KW | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-4 | Φ60x400 mm(2.0"x16") | 3.5KW | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-5 | Φ80x300 mm(3.2"x12") | 4KW | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-6 | Φ80x400 mm(3.2"x16") | 4.5KW | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-7 | Φ100x400 mm(4.0"x16") | 5KW | TW-0.5A;0.5L/s;120W;110/220V | |
| ST-1200RG-8 | Φ150x400 mm(6.0"x16") | 6KW | TW-1A;1L/s;120W;110/220V | |
| ST-1200RG-9 | Φ200x400 mm(8.0"x16") | 7KW | TW-1A;1L/s;120W;110/220V | |
Any specific requirements,please inform us,we can design for you specially.
Desk Type Vacuum Tube Gas Inject Atmosphere Annealing Furnace
Annealing furnace vacuum pump : Furnace quartz tube :
Lab furnace will be packed by plastic , foam and plywood case outside .
⇒ step 1: packed by plastic Step 2: foam-filled ⇓
⇐
step 4: loading Step 3: packed by plywood case outside
Lab tube furnace packaging :
⇒
· Sutong can load container at Qingdao, Tianjin, Shanghai etc.
· Sutong provide shipping method: Courier service, Air transport, Sea transport and rail transport.
· Sutong accept order: Full container cargo load, LCL and sample order
· Sutong provide service:EX-WORK, FOB, CIF, C&F, Door to Door etc
· Sutong has complete quality control system and after-sale service
package of furnace :
♥ .Packing detailed: plastic foam inside, woooden box outside and according to custom requirement.
Delivery times :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Our Warranty :
Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Our advantages:
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
Our service :
♥ Reply your inquiry and questions in 24 hours.
♥ Our professional technicians answer all your questions in English.
♥ Customized design is available.
