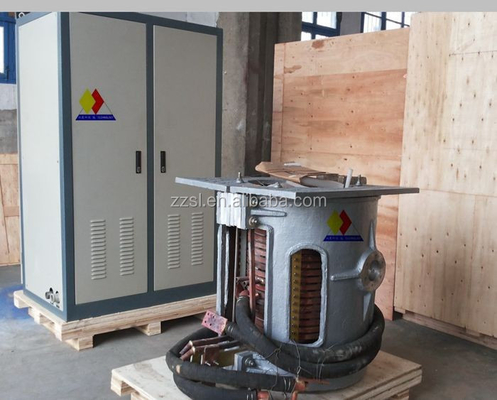

MF Generator power supply for melting furnace, vacuum melting furnace,
1.Advanced technology and design;
2.Digital control;
3.Perfect protect system;
4.Full module structure
KGPS thyristor IF power supply
Full digital control: It is provide with high precision and high reliability.
Voltage & Current double-closed-loop control system; It can ensure the system operated stably.
Impeccable protection system; It provide the protection of over-voltage, over-current, phase loss, shortage of hydraulic press, water over- temperature and so on, which can ensure the component not be damaged when the equipment is going wrong.
High power factor operating characteristics; It makes the operating efficiency and power factor of the set of the equipment reach the maximum value.
Perfect external control interface; It realized the closed-loop control of external temperature convenient.
Power supply starting performance being 100%; It can resolve the problem thoroughly of starting failure.
Full-module structure is adapted to minimized volume of the device and improves its reliability.
Excellent characteristics of IGBT can make the equipment operated in the frequency scope of 0.5 kHz-200 kHz. It can utter expand its operation scope.
Specifications
Power Model | Input (V) | Power (KW) | Frequency (KHZ) | Cool Water (T/h) | Water (Mpa) | Out-Dimension (mm) | (KG) |
KGPS60 |
| 60 | 1-10 | 2.5 | 0.25 | A | 400 |
KGPS100 |
| 100 | 1-10 | 3 | 0.25 | A | 480 |
KGPS160 |
| 160 | 1-8 | 5 | 0.3 | B | 600 |
KGPS250 |
| 250 | 1-8 | 5 | 0.3 | B | 700 |
KGPS400 |
| 400 | 1-8 | 6 | 0.4 | C | 850 |
KGPS500 |
| 500 | 1-6 | 6 | 0.4 | C | 1000 |
KGPS750 |
| 750 | 1-6 | 8 | 0.4 | C | 1250 |
KGPS1000 |
| 1000 | 1-4 | 10 | 0.4 | D | 1250 |
KGPS1500 |
| 1500 | 1-4 | 12 | 0.4 | E | 1750 |
KGPS2000 |
| 2000 | 1-2.5 | 18 | 0.4 | E | 2000 |
KGPS2500 |
| 2500 | 0.5-2.5 | 20 | 0.4 | E | 2500 |
KGPS3200 |
| 3200 | 0.5-1 | 35 | 0.4 | E | 2800 |
KGPS6500 |
| 6500 | 0.4-0.5 | 50 | 0.4 | F | 3500 |
Other specification can be made according to the requirement
A-750×800×1980 (L×W×H)
B-1400×800×1980 (L×W×H)
C-1800×800×1980 (L×W×H)
