Product Description
vacuum nitrogen atmosphere furnaces 1400 For sintering heat treatment

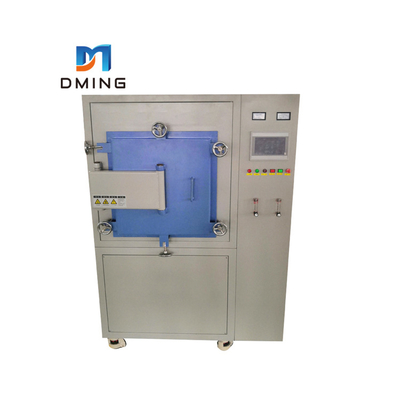

Advanced Technology Atmosphere Oxygen Nitrogen Muffle Furnace for Sintering and Annealing
This furnace is pre-vacuumed to ensure that the oxygen content in the furnace is minimized, and then nitrogen, argon or nitrogen-hydrogen is introduced to obtain the desired heating treatment under the protection of the atmosphere. Due to its excellent atmosphere and compactness, it has been widely used in material laboratories or small batch production of semiconductors, silicon nitride and other products.
Technical Parameter:1700 type
|
Model |
Max. Temp. |
Chamber size |
Voltage |
Power |
|
DM-17AM-1 |
1700℃ |
100*100*100mm |
220V |
1kW |
|
DM-17AM-2 |
1700℃ |
120*120*130mm |
220V |
3kW |
|
DM-17AM-3 |
1700℃ |
150*150*150mm |
220V |
4kW |
|
DM-17AM-5 |
1700℃ |
150*150*200mm |
220V |
5kW |
|
DM-17AM-8 |
1700℃ |
200*200*200mm |
220V |
7kW |
|
DM-17AM-12 |
1700℃ |
200*200*300mm |
220V |
8kW |
|
DM-17AM-27 |
1700℃ |
300*300*300mm |
380V |
10kW |
|
DM-17AM-36 |
1700℃ |
300*300*400mm |
380V |
12kW |
|
DM-17AM-64 |
1700℃ |
400*400*400mm |
380V |
20kW |
Product Features
|
RT~1700℃ |
|
The furnace is made of alumina polycrystalline fiber, and the temperature field is balanced and pollution-free. |
|
Fully enclosed structural furnace, double-layer thickened steel plate, can bear 0.1 Mpa pressure |
|
The top, left, right, and back are made of 12mm solid square steel for reinforcement, and the vacuum is not deformed. The maximum vacuum can be up to -0.08MPa. |
|
Temperature controlling system adopts industrial precision 0.2-level intelligent instrument, PID adjustment, 50-segment programming |
|
The furnace door has good sealing performance. Four hand wheels lock the furnace door,and use the silicone ring to seal. |
Why Choose Us:
Q1: How is your company's product after-sales service system?
A: We have professional pre-sales and after-sales departments and
can respond to you within 8 hours to resolve any technical issues.
Q2: How about the quality guarantee period?
A: 2 years, exclude irrationally operating and consumable parts.
Q3: How about your products quality?
A: CE certification available and twice test before shipping.
Q4: What's your delivery time?
A: Conventional model needs 3 days.35 days for customized products
Q5: Are you a manufacturer or a trading company?
A: We are a factory with 10 years experience in the field.
