Laboratory high vacuum muffle furnace Application:
Used vacuum sintering furnace is widely used in the heat treatment of metallic material or ceramic parts in low or high vacuum, especially used in the vacuum brazing of the materials like stainless steel, high temperature alloy, hard alloy and nonferrous metal in reducibility or protective atmosphere. Can also be used for special heat treatment of materials such as carbon products in the development process of carbonation.

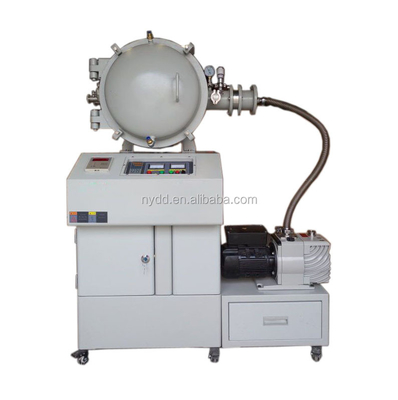

Vacuum furnace details picture:
Vacuum furance details technical specification:
| Item No. | SV2-2-19TP |
| Chamber size: | 100x100x100 mm, Capacity: 1 liter. |
| Power: | 2kW Max. ( power cord is included ) |
| Voltage: | AC 220V 50/60 Hz |
| Max. Temperature : | 1900 °C for short time ; |
| Continuous Working Temperature: | 1800 °C Max. ; |
| Max. Heating Rate: | 0-30 °C /min,Suggest to be 20.C/min. |
| Temperature Controller : | PID automatic control and auto-tune function. 30/50 programmable segments for precise control. Built in protection for overheating and broken thermocouple. Large digital control panel for easy operation. |
| Temperature Accuracy : | +/- 1 °C |
| Heating Elements : | graphite rod |
| Thermocouple : | Infrared Thermometer |
| Max. vacuum: | 100Pa,10Pa,1Pa, 10*-1pa, 10*-3pa optional. |
| Atmosphere: | Helium (He), Neon(Ne), Argon(Ar), Krypton(Kr), Xenon(Xe), Radon(Rn), Oxygen(O2),Nitrogen (N2), Hydrogen(H2) . |
| Standard parts: | Vacuum pump 1pc,crucible tongs 1pc,asbestos gloves 1 pair,one user manual. |
| Optional parts: | PLC touch screen controller, paperless recorder,Remote communication control system, 2-3 gas channels mixing system desktop. |
High vacuum Muffle furnace Standard Sizes:
Type | Furnace size | Delivery time |
high vacuum muffle furnace | 100x100x100mm | 30 days |
high vacuum muffle furnace | 200x150x150mm | 30 days |
high vacuum muffle furnace | 300x200x200mm | 30 days |
high vacuum muffle furnace | 400x300x300mm | 30 days |
More bigger chamber size can be customized.
Warranty: One year limited warranty with lifetime support, excluding heating element
and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage
from wrong operate and use are not under the coverage of One Year Limited Warranty.
