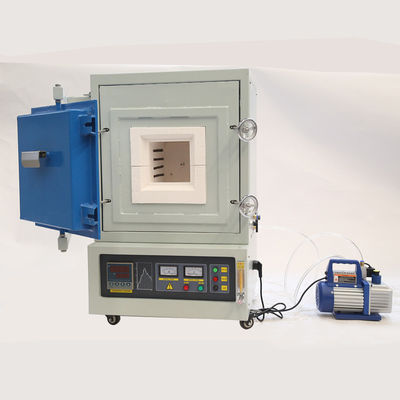

1400 Degree Atmosphere Furnace The Furnace Digital Muffle Furnace Boxtype Atmosphere Muffle Furnace

1.0 Sets
MOQ
1400 Degree Atmosphere Furnace The Furnace Digital Muffle Furnace Boxtype Atmosphere Muffle Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3 Years
Classification: Laboratory Heating Equipments
Customized Support: OEM, ODM
Model Number: SX2-1400
Product Name: Electric Dental Vacuum Porcelain Sintering Atmosphere Furnace For Sale
Chamber Material: Alumina Oxide
Furnace Structure: Double Shell With Cooling
Temperature Control: 30 Segement Programable And PID Auto Control
Heating Elements: MoSi2 Heating Element
Working Temperature: 1300C
Heating Rate: 0-20C/ Min
Type: Argon Atmosphere Furnace 1400 Degree
Keywords: Vacuum Muffle Furnace
Application: Atmosphere Furnace For Chrome Cobalt Stress Relief
Basic Infomation
Model Number: SX2-1400
Payment & Shipping Terms
Packaging Details: Plastic paper inside, Polyfoam filled, Wooden box outside.1400 Degree Atmosphere Furnace The Furnace Can Insert All Inert Gas Boxtype Atmosphere Muffle Furnace
Supply Ability: 500 Set/Sets per Month Gas Boxtype Atmosphere Muffle Furnace
Product Description
Product Description
Vacuum atmosphere furnace is designed for material synthesis under controlled inert gas atmoshphere up to 1400 ºC with better temperature uniformity. The furnace consists of high quality alumina fiber and
SiC heating elements,It is an ideal tool for preparing new materials which requires a heat treatment under inert gas or oxidizing gas.
Nitrogen argon inert protective gas atmosphere heat treatment muffle furnace mainly used for university, research institutions laboratory materials heating treatment.
Especially for some special materials, it needs inert gas to protect it from changing due to air at high temperature. In other words, keep it pure to make sure test is perfect.
Detailed Images
1. The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy saving above 50%
2. The heating element is made of high-quality alloy wire, which can bear large load, stable and long service life
3. The heating rate is fast, from room temperature to 1000 degrees, generally takes 15-30 minutes
4. High precision of temperature control, small temperature compensation and temperature accuracy ± 1 ° C
5. Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 30 segments
6. Electronic components are used Delixi products, with leakage protection, safe and reliable
Size Information
Type
Sintering muffle furnace
Max temperature
1400 °C for short time
Working temperature
1300 °C Max.
Chamber size
300x200x200mm, Capacity: 12 liter
Voltage
AC 380V 50/60 Hz
Power supply
Single phase/ Three phase
Heating element
SiC heater
Temperature control
30 segments programmable and PID auto control
Heating rate
0-30 °C /min,Suggest to be 20.C/min.
Temperature Controller
PID automatic control and auto-tune function.
30 programmable segments for precise control.
Built in protection for overheating and broken thermocouple.
Large digital control panel for easy operation.
Temperature accuracy
±1 degree
Max. vacuum
-0.1Mpa (100000Pa) or 1000-500Pa
Thermocouple
S type
Accessories
High temperature gloves, clip,quartz boat,crucible
Type
Furnace size
Working/Max.temperature
Delivery time
1400 C atmosphere furnace
100x100x100mm
1300 C/1400 C
5-30 days
1400 C atmosphere furnace
200x150x150mm
1300 C/1400 C
5-30 days
1400 C atmosphere furnace
300x200x200mm
1300 C/1400 C
5-30 days
1400 C atmosphere furnace
400x300x300mm
1300 C/1400 C
5-30 days
Application
1) laboratory heat treatment with some atmosphere gas (N2,Ar,H2,O2)
2) Ceramics sintering and metal melting.
3) Preheating,Quenching,annealing,temperaing, and normalizing
Related Products
Packing&Shipping
1.The furnace body was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks
After Sales Service
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.Deliver the products in confirmed shipping time and inform customer.

1400 Degree Atmosphere Furnace The Furnace Can Insert All Inert Gas Boxtype Atmosphere Muffle Furnace
1400 Degree Atmosphere Furnace The Furnace Can Insert All Inert Gas Boxtype Atmosphere Muffle Furnace
