Atmosphere furnace Application:
It is designed for material synthesis under controlled inert gas atmoshphere up to 1100 ºC with better temperature uniformity. The furnace consists of high quality alumina fiber brick and
Fe-Cr-Al heating elements,It is an ideal tool for preparing new materials which requires a heat treatment under inert gas or oxidizing gas.
Inert gas Atmosphere furnace Structure:
High purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
Heavy duty double layer structure with cooling fan to keep furnace exteriors safe to touch.
Doble layer sreel case with forced air cooling to ensure lower saferface temperature.
One optional venting port is built on the top of furnace,need at extra cost .
Inert gas Atmosphere furance details specification:
| Item No. | SA2-1-12TP |
| Chamber size: | 100x100x100 mm, Capacity: 1 liter. |
| Power: | 1000 W Max. ( power cord is included ) |
| Voltage: | AC 220V 50/60 Hz |
| Max. Temperature : | 1200 °C for short time ; |
| Continuous Working Temperature: | 1100 °C Max. ; |
| Max. Heating Rate: | 0-30 °C /min,Suggest to be 20.C/min. |
| Temperature Controller : | PID automatic control and auto-tune function. 30 programmable segments for precise control. Built in protection for overheating and broken thermocouple. Large digital control panel for easy operation. |
| Temperature Accuracy : | +/- 1 °C |
| Heating Elements : | Fe-Cr-Al Alloy doped by Mo. |
| Thermocouple : | K type |
| Max. vacuum: | -0.1Mpa, 5000Pa, 550Pa optional; |
| Atmosphere: | Helium (He), Neon(Ne), Argon(Ar), Krypton(Kr), Xenon(Xe), Radon(Rn), Oxygen(O2),Nitrogen (N2), Hydrogen(H2) . |
| Standard accessories: | Vacuum pump 1pc,crucible tongs 1pc,high temperature gloves 1 pair,one user manual. |
| Optional accessories: | Touch Screen Controller, Remote Communication Control System, 2-3 gas mixing system |

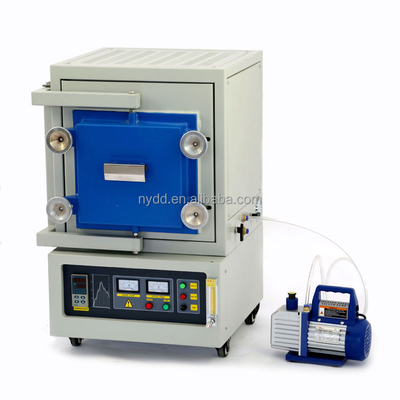

1200.C Atmosphere furnace details picture:
Atmosphere furnace Standard Sizes:
Type | Furnace size | Working/Max.temperature | Delivery time |
1200.C atmosphere furnace | 100x100x100mm | 1100.C/1200.C | 1-15 days |
1200.C atmosphere furnace | 200x150x150mm | 1100.C/1200.C | 1-15 days |
1200.C atmosphere furnace | 300x200x200mm | 1100.C/1200.C | 1-15days |
1200.C atmosphere furnace | 400x300x300mm | 1100.C/1200.C | 1-15 days |
Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Temperature’s curve for your reference as below.( for example: 6 segments)
